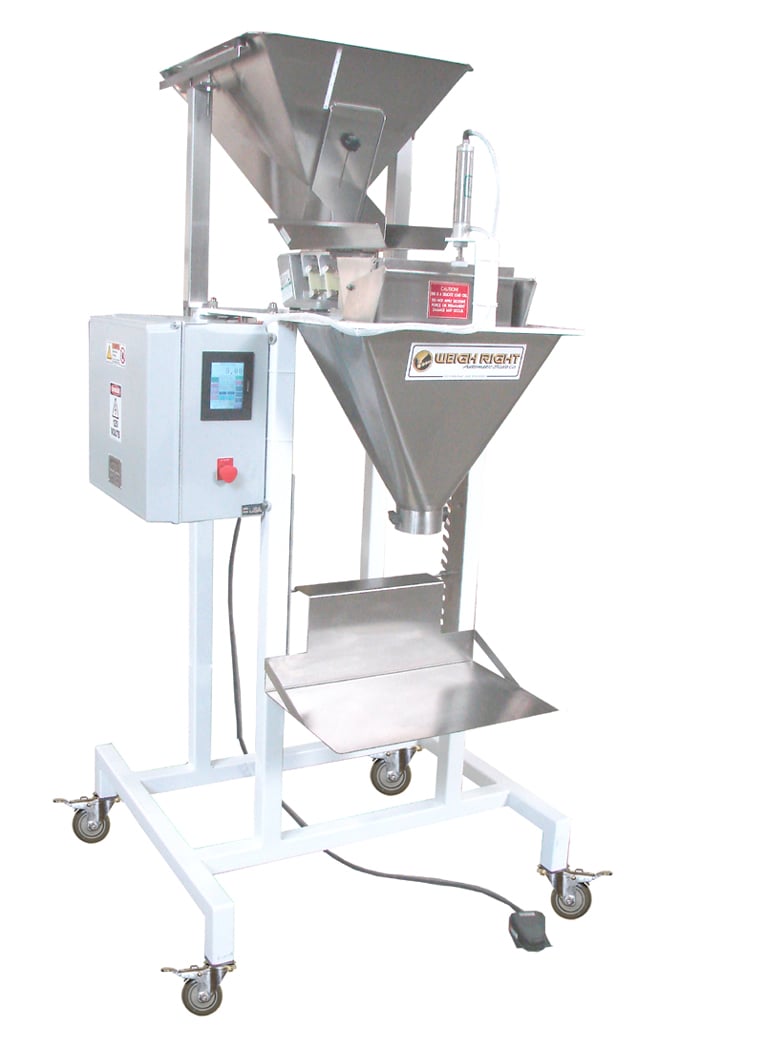

The Weigh Right iQ-1E is a vibratory, net weigh scale for small volumes. The iQ-1E can weigh 1 oz. to 10 lbs. of free flowing products like whole bean and ground coffee, small nuts, rice, grains, spices, small candies, teas, popcorn and similar products. The iQ-1E is available in semi-automated or fully-automated models and can display weight in: lbs., oz., grams or the number of pieces (determined by average piece weight). The control box has a touch screen interface with menu driven controls for easy set-up and multiple features including a 50 job memory storage, batch counting, auto-zero and a self-teaching feature. The iQ-1E air compressor comes standard and allows for single button start-up.
IQ 1E Fill Rates:
| Weight | Rate |
|---|---|
| 1 oz to 4 oz | 20 FPM |
| 8 oz to 1 lb | 15 FPM |
| 2 lbs to 3 lbs | 10 FPM |
| 3 lbs to 10 lbs | 6 FPM |
Standard Features:
- Measures between 1 oz and 5 lbs without changing parts
- Accuracies up to zero to .01 lbs over
- Air-compression system allows single-button startup
- Sensitive protectively-encased load cell with 800% overload protection
- Stainless steel contact surfaces
- Controls engineered for easy maintenance and parts replacement
- Touchpad indicator features easy-to-use weight settings and feed-rate controls
- Measures: 24″ W x 48″ D x 53″ (49″ W x 48″ D x 83″ with options)
Options:
- Attachable custom spout
- Adjustable container shelf
- Supply hopper extension (3.5 cu ft)
- Supply hopper vibrator
- Support stand
- Swivel/locking casters for portability
1Testing might be required to determine obtainable speeds and accuracy for your application.
Utility Requirements:
- Air: Compressor included
- Electrical: 120VAC, Single Phase, 60 HZ
