Brand: Ohlson Packaging
The Ohlson MD-CR series are stand-alone metal detectors that can be either be on a conveyor (not included) or set up to detect metal contaminants as they fall through a vertical opening. They include: auto stop, out of specification alarm and product rejection, and battery backup. The MD-CR can be integrated with Ohlson’s Model WC-60 check weigher.
STANDARD FEATURES:
- accuracy up to 0.8 mm Fe and 2.0 mm SS
- tunnel width: 400mm
- tunnel height
- Horizontal: 100mm, 150mm or 200mm
- Vertical: 146mm
- flashing light alarm and horn
- stop automatically upon metal detection
- automatically rejection
- stainless steel construction
- remote color touch pad
- 100 product programs
- battery backup
OPTIONS:
- transfer conveyor
UTILITIES:
- Air: 10 CFM @ 100 PSI
- Electrical: 220VAC, I Ph, 60Hz, 10A

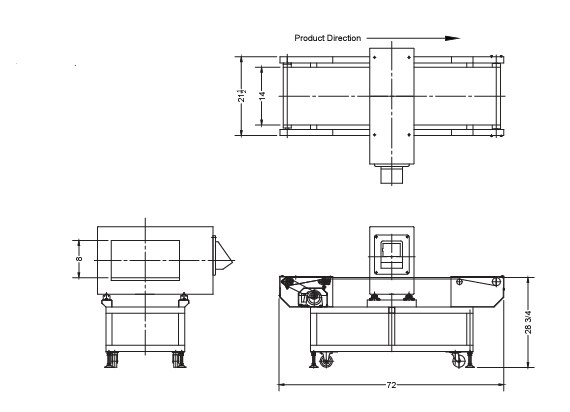

APPROXIMATE DIMENSIONAL DRAWING:
