Brand: New London Engineering
Made in the USA ![This product is made in the USA]()

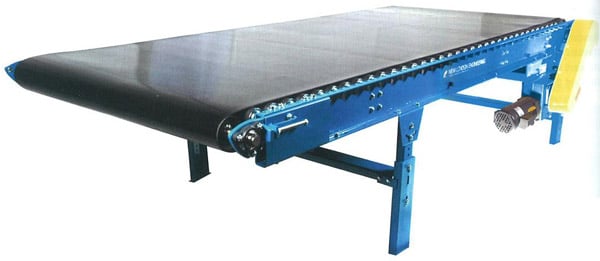

The New London 640 conveyor is a heavy-duty, industrial-use, horizontal, belt conveyor with a roller bed carrying surface that reduces friction to increase load-moving capacity with lower power requirements. The Model 640 is available in widths up to 36” and lengths to 100’ (6” increments). The standard ½ HP motor can produce belt speeds up to 60 fpm. The 12 gauge steel frame has adjustable legs with a maximum height-to-belt of 30”.
Standard Features:
- Widths: Up to 36″
- Lengths: 5’– 100′ (6″ increments)
- Speed: 60 FPM
- 1/2 HP drive: bottom mount, right side<
- Belt: black PVC 120, clipper lacing
- Drive Pulley: 8″ dia. crown face rubber lagged x 1-7/16″
- Infeed Pulley: 4″ dia. crown face take up x 1-3/16″
- Frame: 6-1/2″ x 1-1/4″ deep x 12 gauge
- Bearings: grease sealed
- Rollers: 2″ diameter x 16 ga. with 716″ hex shaft on 6″ centers
- Adjustable supports 30″ top of belt
- NENM 12 controls
- NLE blue enamel paint
Options:
- Casters
- Side rails
- Custom paint color
- Foot switch
Utility Requirements:
- Air: None
- Electrical: 230/460 VAC, 3 Phase, 60 Hz TEFC
Approximate Dimensional Drawing:
