Brand: New London Engineering
Made in the USA ![This product is made in the USA]()

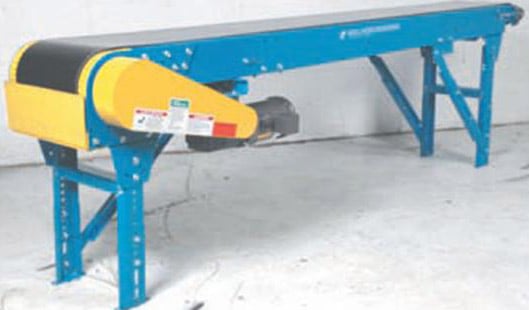

The New London 200 Series horizontal, powered, flat slider bed conveyors are available in four configurations. The Model 200 is a shallow frame, narrow slider bed for light duty applications. The Model 210 is a shallow frame slider bed for medium duty applications. The Model 220 is a deep frame slider bed for longer and wider and heavier applications. The Model 221 is a heavy drive shaft, deep frame slider bed for long, wide and heavier weight applications. The 200 Series are designed for conveying boxes, bag and small pallets and available in widths from 30-48” and lengths up to 100’.
Standard Specifications:
- Widths:
- 200 up to 30″
- 210 up to 36”
- 220 up to 36”
- 221 up to 48”
- Length: 5’
- Speed: 60 FPM
- Motor:
- 200 – 1/3 HP
- 210/220/221 -1/2 HP
- Standard drive: bottom mount, right side
- Adjustable height legs<
- Belt: Black PVC 120, clipper lacing
- Drive pulley:
- 200 – 4″ dia.
- 210/220/221 – 8” dia.
- In feed pulley: 4″ dia.
- Frame:
- 200/210 -2.75”, 12 ga.
- 220/221 – 5.5”, 12 ga.
- Supports: 30″ elevation top of belt
Options:
- Lengths: up to 100′ (6″ Increments)
- Belt widths:
- 8” to 20” in 2” increments
- 24” to 48” in 4” increments
Utilities:
- Air: None
- Electrical: 230/460 VAC, 3 ph, 60HZ TEFC
Approximate Dimensional Drawing:
