Brand: Logical Machines
Made in the USA ![This product is made in the USA]()
![This product is made in the USA](/wp-content/themes/inpaksystems/assets/images/icon-flag.gif)

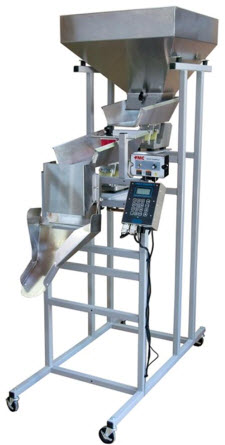

The Logical Machines Model S-6 Cascading Net Weigh Filler is specifically engineered to run especially difficult dry bulk materials such as crackers, chips, and other non-free-flowing products. With the vibratory bulk/dribble feeder, the Model S-6can fill 0.5 oz. to 10 lbs. bags at a rate of 600-800 bag/hr. with accuracies up to +/-1.0 gram (0.001 lbs.). The compact Model S-6 requires only 2’x 4’ of floor space and is compatible with virtually all open mouth bags and rigid containers.
Standard Features:
- Bulk material from 0.5 oz. to 10 lbs.
- Designed for difficult-to-run, non-free-flowing products
- Cascading feed pans
- Reads out to 1 gram or .001 lbs
- Controller range up to 10 lbs
- Powder-coated chassis with stainless steel surfaces
- Supply hopper size: 24″ x 24″ (3.5 cu. ft.)
- Standard funnel size: 2.5″ x 2.5″
- Overall height: 74.5″
- Requires only 24″ x 48″ of floor space
- Automatic tare adjustment
- Self-adjusting bulk & dribble speed controls
- Can achieve 600-800 fills-per-hour
Options:
- Discharge chute
- Discharge chute adapters
- Dribble feed gate
- Stainless steel chassis
- 240VAC 50HZ motor
Utility Requirements:
- Electrical: 120VAC @7 AMPS, Single-Phase, 50/60HZ (standard wall outlet)
- Air: <0.25cfm @ 30psi
Approximate Dimensional Drawing:
Coming Soon
