Brand: Johnson & Sons Manufacturing
Made in the USA ![This product is made in the USA]()

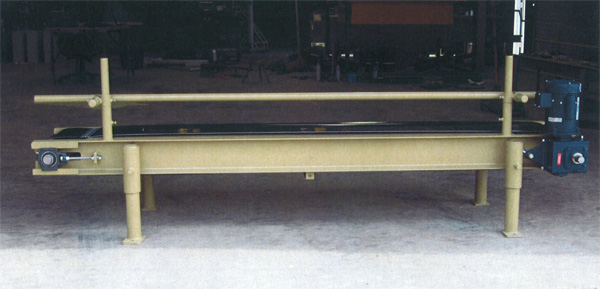

The Johnson & Sons bag closing flat belt conveyor is designed to transfer filled bags in an upright position through a closing system such as heat sealer or sewing head. The standard 10’ conveyor has a 12” wide smooth top belt with fixed belt speeds of 38, 45 or 55 fpm. An optional variable belt speed is also available. The painted mild steel frame has manually adjustable legs and rear bag rail.
Standard Features:
- 12 in wide, smooth-top belt
- Adjustable belt height
- Adjustable rear guide rails
- Self-cleaning tail pulleys
- 38 or 45 or 55 ft-per-minute fixed belt speeds
- 10 ft long conveyor rails
- Painted mild steel; construction
Options:
- Adjustable belt height (Hand crank or motorized)
- Custom length conveyor rails
- VFD variable belt speed
- Adjustable front guide rails
- Stainless steel construction
- Custom belt widths
Utility Requirements:
- Air: None
- Electrical: 460 VAC, 3-Phase, 60 HZ or 220 VAC, Single Phase, 60 HZ
Approximate Dimensional Drawing:
Coming Soon
