JanTec Model PTM Power Belt Curve

Brand: JanTec, Inc.
Made in the USA This product is made in the USA

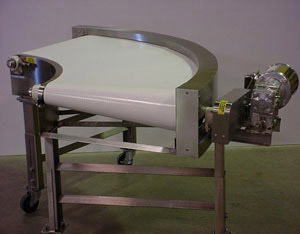

The JanTec PTM is an inline, curved, power belt conveyor that is available with a wide range of widths and radii from 15” to 96” to fit every application. The PTM comes in Standard, Heavy Duty and Small Pulley models. The Heavy Duty model can handle loads up to 4,000 lb. per turn. The Small Pulley model has smaller diameter pulley assemblies located at each end for transporting small dimension products. The PTM’s belts are driven throughout their entire width, not just outside the radius edge, so that loads are transported smoothly and efficiently. Speeds of up to 600 feet-per-minute at center line are available.1

Standard Features:

  • Ruggedly constructed
  • Available in Standard, Heavy Duty, and Small Pulley models
  • Belts are driven throughout their entire width belt
  • Drive pulleys are sized for your load
  • Guide system features sealed ball bearings
  • No roller chains or sprockets are required
  • Wide range of widths and radii to fit every application
  • Speeds of up to 600 feet-per-minute at centerline are available.1
  • Can be constructed to meet FDA or USDA requirements
  • All steel frame with cross bracing
  • Externally mounted precision flange unit bearings
  • Polyester carcass with black PVC cover is standard (120# per inch of belt width capacity)
  • Pulleys are steel, tapered, lagged, easily adjustable to control belt tension and tracking
  • Both drive and idler shafts are cold drawn steel
  • Drive is right angle reducer with C-face mounted motor—reliance or equal
  • Extended, keyed drive shafts for customer-furnished drives
  • High grade industrial enamel finish

Options:

  • Stainless Steel frame
  • Heavy duty construction for frame, pulleys, shafts and belting
  • Side guards for both inside and outside radii
  • Adjustable +/- 3″ steel channel floor supports (If top-of-conveyor height allows)
  • Mechanical or electrical variable speed drives
  • Ceiling support brackets
  • Bed relief rollers for high weight loading
  • Custom colors, Steel-It, epoxy, and powder coat paints
  • Floor casters with optional brakes
  • Nose rollers for handling very small parts
  • Special belting for
    • High temperatures
    • Cut resistance
    • Slick top
    • Rough top
    • FDA/USDA food handling requirements,
    • Others

1Testing might be required to determine obtainable speeds for your application.

Utility Requirements:

  • Air: None
  • Electrical: specific to application

Approximate Dimensional Drawing:
