The Fischbein Model 400 Pro is a basic, pedestal mounted, plan sewing system for closing multi-wall paper, woven polypropylene and jute bags.
The Model 400Pro includes the fully enclosed, self-lubricating Fischbein Model 100 sewing head which is ideal for harsh environments. With sewing rates up to 55 ft./min, the Model 400-Pro is a medium to high volume bag closer. The Model 400 Pro has a pneumatic thread pusher which positions the thread into the scissor style knife.
With options such as: duel needle system, infeed system, rotary knife, bag tagger and fold-over bag feeds, the Model 400 Pro can be configured for virtually any application.
Check out Inpak’s full line of sewing thread for your bag sewing machines, portable sewers, or industrial heads.
INPAK SYSTEMS stocks many Fischbein Model 400 Pro & D4380 replaceable OEM parts.
A Model 400 Pro parts diagram and a list of common replaceable Model 400 Pro parts is available.
A Model D4380 Infeed parts diagram and a list of common replaceable Model D4380 Infeed parts is available.
STANDARD FEATURES:
- Speeds up to 55 linear feet per minute @ 25 SPI
- Fischbein Model 100 Sewing Head
- Scissor style thread knife
- Pneumatic thread pusher
- Bag types: multi-wall paper, woven poly, and jute
- Swing-away sewing head
- Bag width: 4″ to 26″ wide
- Bag Height: up to 45″ high (empty), flat or with any size gusset (6″ minimum free top)
- Bag weight 1 to 110 lb.
- Adjustable sewing height: 30.5″ to 56.5″
- Emergency stop
- Corrosion resistant finish
- Pedestal with casters
- NEC and NFPA compliant
- NEMA-12 dust tight wiring
OPTIONS:
- Infeed system
- Dual needle system
- PLC Control Package—thread break/oil sensor
- Filler Cord Attachment Model 16292
- Front Print Bag Coder Model A5325
- Special Steel-It paint finish
- Rotary knives for cutting thread at medium-to-high speeds
- Bag top fold-over for woven polypropylene bags
UTILITIES:
- Air: 1 CFM @ 90 PSI (depending on options)
- Electrical: 230/380/460/575 VAC, 1/3 ph, 50/60 HZ, 20 AMP max
STARTUP SERVICES:
INPAK SYSTEMS offers an optional startup service on your new Fischbein Model 400 Pro. This includes verifying the Model 400 Pro is operating properly to factory specifications. The startup service includes operation verification, operator training and maintenance training.
PREVENTIVE MAINTENANCE SERVICES:
To prevent downtime and costly emergency repairs, preventive maintenance (PM) services are available for your Fischbein Model 400 Pro. To ensure your Model 400 Pro is operating at maximum efficiency, PMs can be arranged to fit your production schedule.
MAIL ORDER REPAIR SERVICES:
If you need a quick and cost effective repair of your Fischbein Model 400 Pro, just box it up and ship it to one of our repair facilities. Our experienced, manufacturer-trained, and certified technicians use genuine OEM replacement parts to ensure your Model 400 Pro is restored to its original factory operating specifications.
Loaners are available to keep you operational while your Model 400 Pro is being serviced.
IN-PLANT REPAIR SERVICES:
INPAK SYSTEMS offers in-plant repair of your Fischbein Model 400 Pro. Our experienced, manufacturer-trained, and certified technicians use genuine OEM parts to ensure your Model 400 Pro is restored to its original factory operating specifications. Dispatched from either our WI or OH locations ensure a quick response throughout the Midwest.

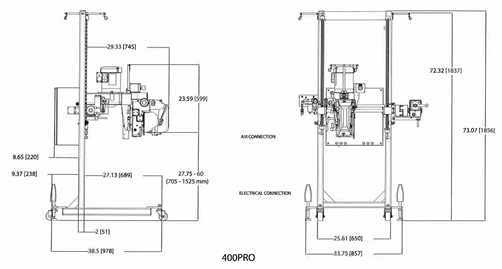

APPROXIMATE DIMENSIONAL DRAWING:
