Brand: ARPAC, LLC
The ARPAC Pro-Series is a semi-automated, pre-stretch film, pallet wrapper. The Pro-Series is available in a high profile model for fork lift loading and low profile model for pallet-jack loading.
With a 4,000 lb. (std.) capacity, the Pro-Series is available with a number of options (i.e. extended towers, split frames for wide loads & access ramps) that can accommodate a wide variety of pallet loads. A scale with printer can be added to the Pro-Series.
Standard Features:
- 4, 000 lb. capacity (std.)
- 74″ max. load height – high profile

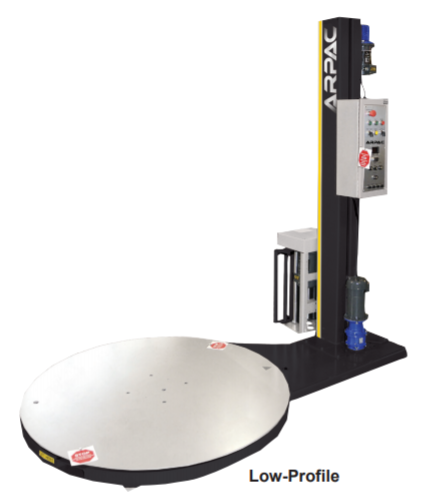

- 81” max. load height – low profile
- 60″ diameter turntable – low-profile (std.)
- 50″ square turntable – high-profile (std.)
- 150 to 300% film pre-stretch EZ-Load® film pre-stretch dispenser for 20″ film rolls
- variable turntable rotation speed up to 12 RPM
- variable carriage speed up to 21 FPM
- automatic load height sensing
- automatic top film over wrap control
- electronic film tension adjustment control
- Allen-Bradley® MicroLogix™ PLC controller
- UL/CSA approved components
- powder coated steel construction
- 1/2 HP, 90 VDC motor
Options:
- Extended film tower for wrapping taller loads
- Top platen device to stabilize tall or light unstable loads
- Access ramps to assist loading of pallet
- Automatic film tear device (AFTD) tears film at end of the cycle
- Split-frame construction to increase clearance for oversized loads
- Cycle counter to count the pallets wrapped
- Extended umbilical cords for split-frame models Integrated scale and printer
Utility Requirements:
- Air: None
- Electrical: 120 VAC, 1 Ph, 60 Hz, 10 A, 1.2 kW

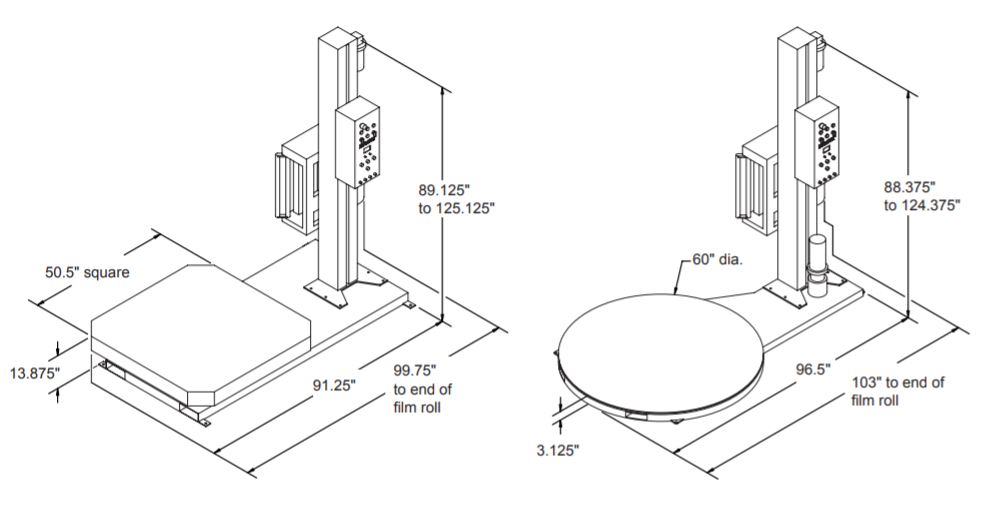

Approximate Dimensional Drawing:
