Brand: All Packaging Machinery
Made in the USA ![This product is made in the USA]()

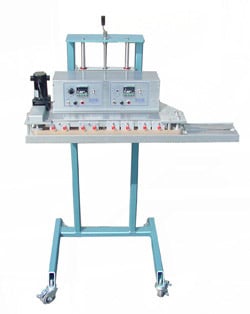

The APM VBS 3/8DH is a manually operated, continuous feed band sealer for heat sealing vertically positioned plastic bags. The VBS 3/8DH is ideal sealing for most plastic, poly and foil bags. Dual 5” heat bars and dual 5” cool bars with independent temperature controls make the VBS 3/8DH ideal for medium to heavy duty bag or pouch sealing applications. With sealing widths of 1/8”, 1/4” or 3/8” the VBS 3/8DH is able to hermetically seal a wide variety of plastic bags with throughput rates up to 45 fpm1.
Standard Features:
- USDA-approved vertical rotary band sealer
- Speeds up to 45 feet per minute in medium to heavy-duty applications
- Especially designed for difficult-to-seal pouch and bag materials
- Uses special heavy-duty, wear-resistant laminated Teflon® bands
- Dual 5″ long heating sections (capable of 500 degrees F)
- Dual 5″ long nickel-plated cooling sections
- Produces consistent, secure, hermetic seals 1/8″, 1/4″, or 3/8″ wide
- Dual digital temperature controls with PID
- Simple on/off switching allows generation from front, rear, or both heaters
- Heavy-duty crank-adjustable floor stand
- Chrome-plated sealing assembly
- Anodized aluminum chassis
- Stainless steel shafting
Options:
- Seal validation
- Embossing coder for product marking
1Testing might be required to determine obtainable speeds for your application.
Utility Requirements:
- Air: None
- Electrical: 120 VAC, Single-Phase, 10 AMPS
Approximate Dimensional Drawing:
Coming Soon
